(JAS) 1954-2004
Introducing the history of aircraft of JAS (Japan Air System Co., Ltd.
January-
DH-114-1B-TAW
In service from January 25, 1954 to June 13, 1973.More detailsAircraft versions DH-114-TAW(TAWRON) Manufacture De Havilland Aircraft Company Engine Model Continental IO-470-D Maximum Take off Thrust×
Number of Engines Installed260hp×4 Overall Length(m)/Wing Span(m)/
Overall Heigth(m)14.8m/21.8m/4.8m Cruising Speed(km/hr) 280km/h Maximum Range(km) 1,930km (MAX) Fuel Tank Capacity
(Volume/Weight)384US gal Seatting Capacity 16
April-

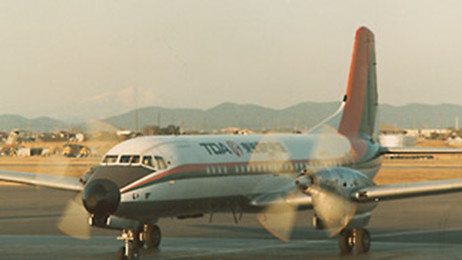

YS-11
In service from April 10, 1965 to December 20, 2006.More detailsAircraft versions YS-11 Manufacture Nippon Aeroplane Manufacturing company Engine Model Rolls Royce DART MK542-10J/K Maximum Take off hrust×
Number of Engines Installed3,060HP×2 Overall Length(m)/Wing Span(m)/
Overall Heigth(m)26.3m/32.0m/9.0m Cruising Speed(km/hr) 444km/h Maximum Takeoff(Landing)
Weight(t)25t (25t) Maximum Range(km) 1,110km Fuel Tank Capacity
(Volume/Weight)4,928l/3,957kg Seatting Capacity 64 Flight Crew 2
-
727-100
In service from 1972 to 1975.More detailsAircraft versions 727-100 Manufacture Boeing Company Engine Model Pratt & Whitney PWJT8D-9 Maximum Take off Thrust×
Number of Engines Installed6,580kg×3 Overall Length(m)/Wing Span(m)/
Overall Heigth(m)46.7m/32.9m/10.5m Cruising Speed(km/hr) 880km/h Maximum Range(km) 2,170km Fuel Tank Capacity
(Volume/Weight)29140l Seatting Capacity 178 Flight Crew 3
September-

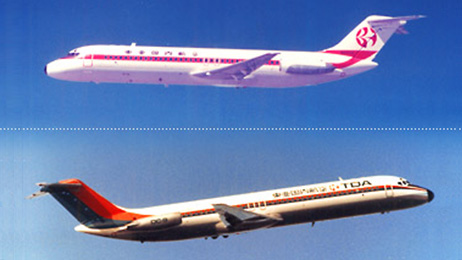

CV-240
In service from September 11, 1973 to January 31, 1997.More detailsAircraft versions DC9-31/DC9-41 Manufacture McDonnell Douglas Corporation (Boeing) Engine Model Pratt & Whitney JT8D-15 Maximum Take off Thrust×
Number of Engines Installed15,000 lbs×2 Overall Length(m)/Wing Span(m)/
Overall Heigth(m)38.3m/28.4m/8.5m Cruising Speed(km/hr) 815km/h Maximum Takeoff(Landing)
Weight(t)52t (46t) Maximum Range(km) 2,420km Fuel Tank Capacity
(Volume/Weight)16,120l/12,943kg Seatting Capacity 128 Flight Crew 2
June-

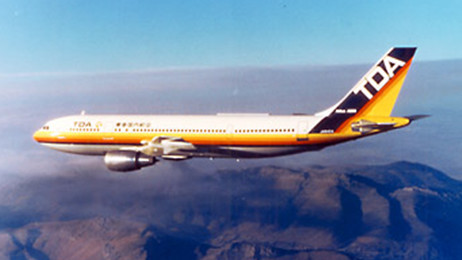

A300-B2(A300-B4)
In service from June 26, 1980 to June 13, 2006.More detailsAircraft versions A300-B2 [A300-B4] Manufacture Airbus industrie Engine Model General Electric CF6-50C 2R Maximum Take off Thrust×
Number of Engines Installed51,000 lbs×2 Overall Length(m)/Wing Span(m)/
Overall Heigth(m)53.6m/44.8m/16.5m Cruising Speed(km/hr) 848km/h Maximum Takeoff(Landing)
Weight(t)137t (130t) [150t (134t)] Maximum Range(km) 2,820km [3,480km] Fuel Tank Capacity
(Volume/Weight)43,993 l/35,322kg Seatting Capacity 298 Flight Crew 3
January-
DC9-81/MD-81
In service from January 26, 1981 to September 27, 1999.More detailsAircraft versions DC9-81/MD-81 Manufacture McDonnell Douglas Corporation (Boeing) Engine Model Pratt & Whitney JT8D-217A/C Maximum Take off Thrust×
Number of Engines Installed20,000 lbs×2 Overall Length(m)/Wing Span(m)/
Overall Heigth(m)45.1m/32.9m/9.0m Cruising Speed(km/hr) 815km/h Maximum Takeoff(Landing)
Weight(t)64t (58t) Maximum Range(km) 2,740km Fuel Tank Capacity
(Volume/Weight)22,104 l/17,748kg Seatting Capacity 163 Flight Crew 2
June-
MD-87
In service from June 3, 1988 to May 19, 2008.More detailsAircraft versions MD-87 Manufacture McDonnell Douglas Corporation (Boeing) Engine Model Pratt & Whitney JT8D-217A/C Maximum Take off Thrust×
Number of Engines Installed20,000 lbs×2 Overall Length(m)/Wing Span(m)/
Overall Heigth(m)39.8m/32.9m/9.3m Cruising Speed(km/hr) 815km/h Maximum Takeoff(Landing)
Weight(t)57t (54t) Maximum Range(km) 2,370km Fuel Tank Capacity
(Volume/Weight)22,104 l/17,748kg Seatting Capacity 134 Flight Crew 2
April-

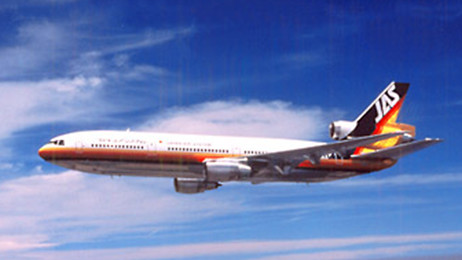

DC-10-30
In service from April 1, 1988 to April 20, 2000.More detailsAircraft versions DC-10-30[International] Manufacture McDonnell Douglas Corporation(Boeing) Engine Model General Electric CF6-50C2 Maximum Take off Thrust×
Number of Engines Installed51,800 lbs×3 Overall Length(m)/Wing Span(m)/
Overall Heigth(m)55.3m/50.4m/17.6m Cruising Speed(km/hr) 891km/h Maximum Takeoff(Landing)
Weight(t)193t (186t) [268t (186t)] Maximum Range(km) 9,700km [10,460km] Fuel Tank Capacity
(Volume/Weight)151,300 l/121,467kg Seatting Capacity 295 [276] Flight Crew 3
April-
A300-600R
In service from April 28, 1991 to September 16, 2011.More detailsAircraft versions A300-600R [International] Manufacture Airbus industrie Engine Model Pratt & Whitney PW4158 Maximum Take off Thrust×
Number of Engines Installed58,000 lbs×2 Overall Length(m)/Wing Span(m)/
Overall Heigth(m)54.1m/44.8m/16.5m Cruising Speed(km/hr) 848km/h Maximum Takeoff(Landing)
Weight(t)144t (140t) [172t (140t)] Maximum Range(km) 3,890km [6,760km] Fuel Tank Capacity
(Volume/Weight)68,150 l/54,720kg Seatting Capacity 292 [239] Flight Crew 2
January-

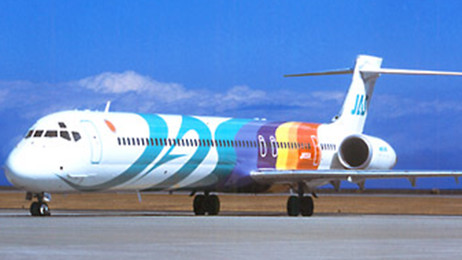

MD-90
In service from July 3, 1995 to May 21, 2013.More detailsAircraft versions MD-90 Manufacture McDonnell Douglas Corporation(Boeing) Engine Model International AeroEngines
V2525-D5Maximum Take off Thrust×
Number of Engines Installed25,000 lbs×2 Overall Length(m)/Wing Span(m)/
Overall Heigth(m)46.5m/32.9m/9.4m Cruising Speed(km/hr) 815km/h Maximum Takeoff(Landing)
Weight(t)66t (64t) Maximum Range(km) 2,330km Fuel Tank Capacity
(Volume/Weight)22,104 l/17,748kg Seatting Capacity 166 Flight Crew 2
April-
777-200
Introduced on April 1997.More detailsAircraft versions 777-200 Manufacture Boeing Company Engine Model Pratt & Whitney PW4074 Maximum Take off Thrust×
Number of Engines Installed74,500 lbs×2 Overall Length(m)/Wing Span(m)/
Overall Heigth(m)63.7m/60.9m/18.5m Cruising Speed(km/hr) 893km/h Maximum Takeoff(Landing)
Weight(t)208t (202t) Maximum Range(km) 5,000km Fuel Tank Capacity
(Volume/Weight)117,300 l/94,184kg Seatting Capacity 380 Flight Crew 2
- A300-600R
-

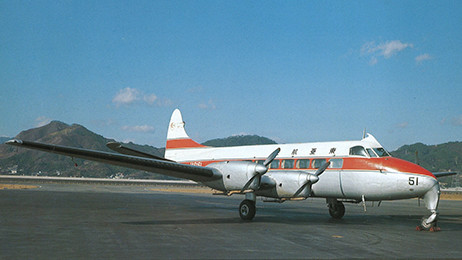

DH-114-1B
In service from November 4, 1953 to December 11, 1970.More details -
DH-104-1BMore details -
C-18SMore details -
PA23More details -

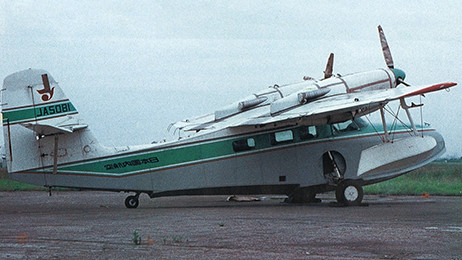

G-73More details -
G-44More details - DHC-2
-
DHC-3More details -
DC-3A
In service from May 6, 1955 to June 4, 1965.More details -
CV-240
In service from September 3, 1960 to July 2, 1971.More details -
CV-880More details -

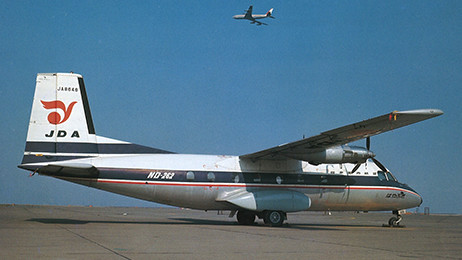

Nord 262More details -
DC-9-51More details -
727-100More details
